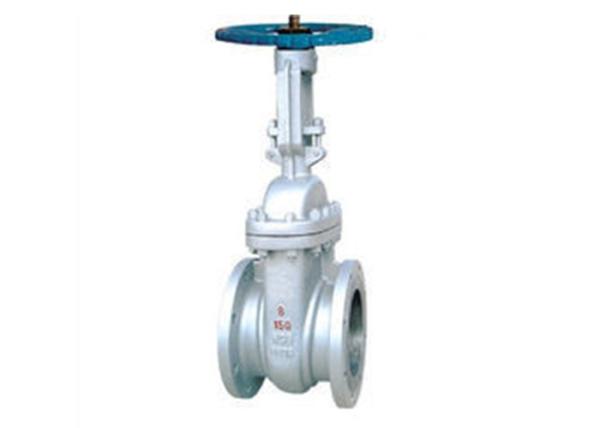

Silver Color Flexible Wedge Gate Valve , Water Gate Valve Large
Size 2 - 36 Inch
GATE VALVE, CARBON STEEL, ASTM A216 GR WCB, GATE 12",
WEDGE GATE 150 LBS (CLASS 150),
RAISED FACE FLANGED, BOLTED BONNET CARBON STEEL
VALVE: WEDGE GATE, CLASS 150 TO API 600 OR BS 1414,
CS BODY/BONNET TO ASTM A216 WCB, TRIM-BRONZE TO ASTM B62,
FLANGED ENDS R/F B. BONNET,
REPLACEABLE PACKING WHEN VALVE UNDER PRESSURE.
NO VISIBLE LEAKAGE PERMITTED AT ALL TESTS,
NO REPAIRS W/O APPROVAL, TROPICAL PACKAGING,
MATERIAL TEST CERTIFICATE REQUIRED, RIGHT OF INSPECTION RESERVED
BODY MATERIAL: CARBON STEEL ASTM A216 GR WCB
TYPE: GATE
SIZE IN INCHES: 12
CONFIGURATION: WEDGE GATE
DESIGN RATING: 150 LBS (CLASS 150)
END CONNECTION: RAISED FACE FLANGED
STYLE: BOLTED BONNET CARBON STEEL
STEM DESING: RISING STEM, OUTSIDE SCREW & YOKE
TRIM MATERIAL: BRONZE ASTM B62
SOFT GOODS: REPLACEABLE PACKING
OPERATION GEAR
SPECIFICATION STANDARD: API 600 / BS 1414
SUPPLEMENTAL REQUIREMENT: NO VISIBLE LEAKAGE ALLOWED IN ALL TESTS
BORE: FULL
SERVICE: BRACKISH WATER
TROPICAL PACKAGING
Applications Standard:
Design and manufacture as API600, ANSI B16.34
Face to face dimensions as ANSI B16.10
End flange dimension as per ANSI B16.5
Pressure-temperature ratings as ANSI B16.34
Pressure test as API 598
Specifications:
Technical Specification:
- Nominal diameter: 1/2"-24"
- Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb
- Applicable Medium: water ,gas,oil,and other causticity medium.
Test Pressure
| Test Item | Shell Test | Seal Test | Back Seal Test | Air Seal Test |
| Medium | Water | Air |
| Unit | MPa | Ibf/in2 | MPa | Ibf/in2 | MPa | Ibf/in2 | MPa | Ibf/in2 |
| Pressure (Class) | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 |
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 |
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11 2 | 1630 |
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 |
| 1500 | 38.4 | 5575 | 28.1 | 4080 | 28.1 | 4080 |
Brief introduction:
The series of gate valves include cast steel gate valve and forged
steel gate valve. They are
designed and manufactured according to ANSI B16.34. With solid
wedge and flexible wedge,
so it can be used for different pressures. Gate valves have back
seal. Back seal of forged-steel gate valve
is weld with stainless steel. So it has perfect sealing. Its
maintenance is
convenient. Widely used in petroleum,chemistry,water treatment
industries.
